3-Channel Pressure Datalogger รุ่น SD750

Description

เครื่องวัดความดัน Pressure Manometer Differential, 3-Channel Pressure Datalogger

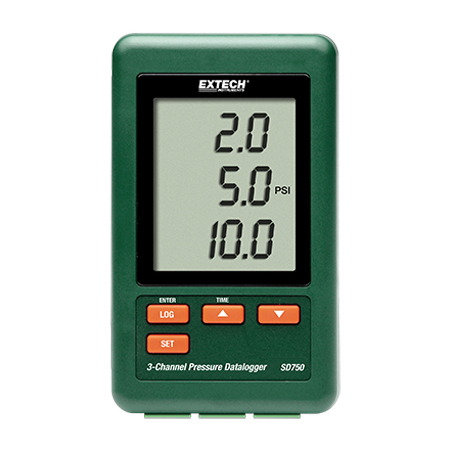

SD750 : 3-Channel Pressure Datalogger ยี่ห้อ Extech, USA

Records data to SD card in Excel® format

Extech’s 3-Channel Pressure Data logger allows technicians to easily monitor and record pressure levels from three sources using one meter instead of three. Applications include pressure measurements from hydraulic, pneumatic, air compressor and process gas systems, as well as other industrial applications. Complete with six AAA batteries, 2G SD card, universal AC adaptor, 3 connectors, and mounting bracket.

Features:

Triple LCD simultaneously displays 3 pressure channels
Up to 5000psi with 4-20mA output
4-20mA input with readout in 9 units of measure
Datalogger date/time stamps and stores readings on an SD card in Excel® format
User-selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or auto
Complete with six AAA batteries, 2G SD card, universal AC adaptor, three connectors, and mounting bracket
Transducers sold separately

For complete specs please download the producdatasheet (not available for some accessories)

Specifications:

Unit	30psi	150psi	300psi
bar	0.002 to 2 bar	0.01 to 10 bar	0.02 to 20 bar
psi	0.02 to 30 psi	0.2 to 150 psi	0.2 to 300 psi
kg/cm²	0.002 to 2.040 kg/cm²	0.01 to 10.19 kg/cm²	0.02 to 20.40 kg/cm²
mmHg	2 to 1500 mmHg	10 to 7500 mmHg	20 to 15000 mmHg
inHg	0.05 to 59.05 inHg	0.2 to 295.2 inHg	0.5 to 590.5 inHg
mH2O	0.02 to 20.40 mH2O	0.1 to 101.9 mH2O	0.2 to 204.0 mH2O
inH2O	1 to 802 inH2O	5 to 4010 inH2O	10 to 8020 inH2O
atm	0.002 to 1.974 atm	0.01 to 9.87 atm	0.02 to 19.74 atm
kPA	0.2 to 200.0 kPA	1 to 1000 kPA	2 to 2000 kPA

Ordering Information:
SD750 …………… 3-Channel Pressure Datalogger
PT30-SD ……….. Pressure Transducer for SD750 (30psi)
PT150-SD ……… Pressure Transducer for SD750 (150psi)
PT300-SD ……… Pressure Transducer for SD750 (300psi)
